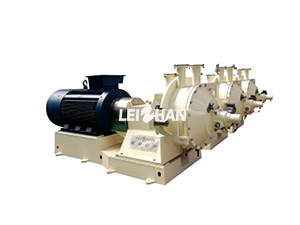

RF Series Double Disc Refiner
In paper making equipment, our RF series double disc refiner can be used for pulping, improving slurry beating degree to meet the paper needs. And we supply full set of machinery in paper industry.
Application & Features
Mainly used for pulping, improving slurry beating degree to meet the paper making demand.
This RF series double disc refiner can be installed various tooth refiner plates.
It is suitable for various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp, etc.
Adopt constant power control system, have stable beating effect.
Have accurate retract mechanism, easy to control.
Main Specification Of RF Series Double Disc Refiner
| type | RF20 | RF26 | RF34 | RF42 | RF52 |
| diameter of disc(mm) | 20-24 | 26-30 | 34-38 | 42-48 | 52-58 |
| range of op.consistency(%) | 3.5-6 | ||||
| Min.flow(L/Min 4%) | 400 | 700 | 1400 | 2200 | 6000 |
| Max.flow(L/Min 4%) | 2400 | 4500 | 9000 | 16000 | 22000 |
| Max. power(kw) | 315 | 500 | 900 | 1700 | 3000 |
Work Principle
Double disc refiner consists of refiner chamber, transmission mechanism, base, and motor, etc. The pulping chamber is composed of two fixed grinding discs fixed on the casing and moving base and two rotating discs installed on the rotating disc to form two grinding areas. By changing the grinding discs with different tooth shapes, it can meet the beating degrees of various paper pulp.
Since 1980, Leizhan company has continued to strive to move on in pulp and paper industry. Over these years, lots of customers from the world choose to buy our machine. We supply full set of machinery in paper making equipment, including this RF series double disc refiner.
Paper pulping line requires more than guesswork.
Leizhan can offer customers complete paper pulp equipment service with rich experience. We are aiming at building a world brand in paper making & pulping field with professional skill and positive innovation spirit.
If you are interested in our products, welcome to our company, you can also consult via telephone or email. We will offer you product details and working knowledge. You will not only get high quality equipment with competitive price but also intimate service.
